Week 6: Convolutional Neural Networks (CNNs)

Image credits: Understanding Deep Learning by Simon J. D. Prince, [CC BY 4.0]

Image credits: Deep Learning by Michael Nielsen

A function $f(\cdot)$ is invariant to a transformation $t(\cdot)$ if \[ f(t(x)) = f(x), \] that is, the function output is the same even after the transformation is applied.
A function $f(\cdot)$ is equivariant to a transformation $t(\cdot)$ if \[ f(t(x)) = t(f(x)), \] that is, the function output is transformed in the same way as the input.

Invariance and equivariance for translation. (a-b) In image classification, the goal is to categorize both images as “mountain” regardless of the horizontal shift that has occurred. In other words, we require the network prediction to be invariant to translation. (c, e) The goal of semantic segmentation is to associate a label with each pixel. (d, f) When the input image is translated, we want the output (colored overlay) to translate in the same way. In other words, we require the output to be equivariant with respect to translation.

Convolutional Neural Networks for $1$D inputs

Convolutional networks consist of convolutional layers, each of which is equivariant to translation.
- If we translate the input $x$, then the corresponding output $z$ is translated in the same way.
- For example, for a kernel size of three, we have \[ z_i = \omega_1 x_{i-1} + \omega_2 x_i + \omega_3 x_{i+1}, \] where $\bm{\omega} = \bmat{\omega_1 & \omega_2 & \omega_3}^\top$ is the kernel.
They also typically include pooling mechanisms that induce partial invariance to translation.

1D convolution with kernel size three. Each output z_i is a weighted sum of the nearest three inputs x_{i-1}, x_i, and x_{i+1}, where the weights are \bm{\omega} = \bmat{\omega_1 & \omega_2 & \omega_3}. a) Output z_2 is computed as z_2 = \omega_1 x_1 + \omega_2 x_2 + \omega_3 x_3. b) Output z_3 is computed as z_3 = \omega_1 x_2 + \omega_2 x_3 + \omega_3 x_4. c) At position z_1, the kernel extends beyond the first input x_1. This can be handled by zero-padding, in which we assume values outside the input are zero. The final output is treated similarly. d) Alternatively, we could only compute outputs where the kernel fits within the input range (“valid” convolution); now, the output will be smaller than the input. — $1$D convolution with kernel size three. Each output $z_i$ is a weighted sum of the nearest three inputs $x_{i-1}$, $x_i$, and $x_{i+1}$, where the weights are $\bm{\omega} = \bmat{\omega_1 & \omega_2 & \omega_3}$. a) Output $z_2$ is computed as $z_2 = \omega_1 x_1 + \omega_2 x_2 + \omega_3 x_3$. b) Output $z_3$ is computed as $z_3 = \omega_1 x_2 + \omega_2 x_3 + \omega_3 x_4$. c) At position $z_1$, the kernel extends beyond the first input $x_1$. This can be handled by zero-padding, in which we assume values outside the input are zero. The final output is treated similarly. d) Alternatively, we could only compute outputs where the kernel fits within the input range (“valid” convolution); now, the output will be smaller than the input.

Stride is the shift by $k$ positions for each output
- Decreases size of output relative to input
Kernel size weighs a different number of inputs for each output
- Combine information from a smaller/larger area
- Larger kernel sizes uses more parameters
Dilated or atrous convolution intersperse kernel values with zeros
- Combine information from a larger area
- Fewer parameters

Stride, kernel size, and dilation. a) With a stride of two, we evaluate the kernel at every other position, so the first output z_1 is computed from a weighted sum centered at x_1, and b) the second output z_2 is computed from a weighted sum centered at x_3 and so on. c) The kernel size can also be changed. With a kernel size of five, we take a weighted sum of the nearest five inputs. d) In dilated or atrous convolution, we intersperse zeros in the weight vector to allow us to combine information over a large area using fewer weights. — Stride, kernel size, and dilation. a) With a stride of two, we evaluate the kernel at every other position, so the first output $z_1$ is computed from a weighted sum centered at $x_1$, and b) the second output $z_2$ is computed from a weighted sum centered at $x_3$ and so on. c) The kernel size can also be changed. With a kernel size of five, we take a weighted sum of the nearest five inputs. d) In dilated or atrous convolution, we intersperse zeros in the weight vector to allow us to combine information over a large area using fewer weights.

Convolutional Layers

A convolutional layer computes its output by convolving the input, adding a bias $\beta$, and passing each result through an activation function $\sigma(\cdot)$.

\[ \begin{aligned} \begin{split} h_i &= \sigma(\beta + \omega_1 x_{i-1} + \omega_2 x_i + \omega_3 x_{i+1}) \\ &= \sigma\left( \beta + \sum_{j=1}^3 \omega_j x_{i+j-2} \right) \end{split} &\quad {\color{DodgerBlue} \class{thick-arrow}{\xleftarrow{\hspace{1cm}}}} \quad \text{3 weights, 1 bias} \end{aligned} \]

This is a special case of a fully connected layer that computes the $i^{\text{th}}$ hidden unit as: \[ \begin{aligned} h_i &= \sigma\left( \beta_i + \sum_{j=1}^3 \omega_{ij} x_j \right) &\quad {\color{DodgerBlue} \class{thick-arrow}{\xleftarrow{\hspace{1cm}}}} \quad \text{$D^2$ weights, D biases} \end{aligned} \]
A fully connected layer can reproduce this exactly if most weights are set to zero and others are constrained to be identical.

Fully connected vs. convolutional layers. a) A fully connected layer has a weight connecting each input x to each hidden unit h (colored arrows) and a bias for each hidden unit (not shown). b) Hence, the associated weight matrix \bm{\Omega} has 36 weights relating the six inputs to the six hidden units. c) A convolutional layer with kernel size three computes each hidden unit as the same weighted sum of the three neighboring inputs (arrows) plus a bias (not shown). d) The weight matrix is a special case of the fully connected matrix where many weights are zero and others are repeated (same colors indicate same value, white indicates zero weight). e) A convolutional layer with kernel size three and stride two computes a weighted sum at every other position. f) This is also a special case of a fully connected network with a different sparse weight structure. — Fully connected vs. convolutional layers.
a) A fully connected layer has a weight connecting each input $x$ to each hidden unit $h$ (colored arrows) and a bias for each hidden unit (not shown). b) Hence, the associated weight matrix $\bm{\Omega}$ has 36 weights relating the six inputs to the six hidden units. c) A convolutional layer with kernel size three computes each hidden unit as the same weighted sum of the three neighboring inputs (arrows) plus a bias (not shown). d) The weight matrix is a special case of the fully connected matrix where many weights are zero and others are repeated (same colors indicate same value, white indicates zero weight). e) A convolutional layer with kernel size three and stride two computes a weighted sum at every other position. f) This is also a special case of a fully connected network with a different sparse weight structure.

Exercises

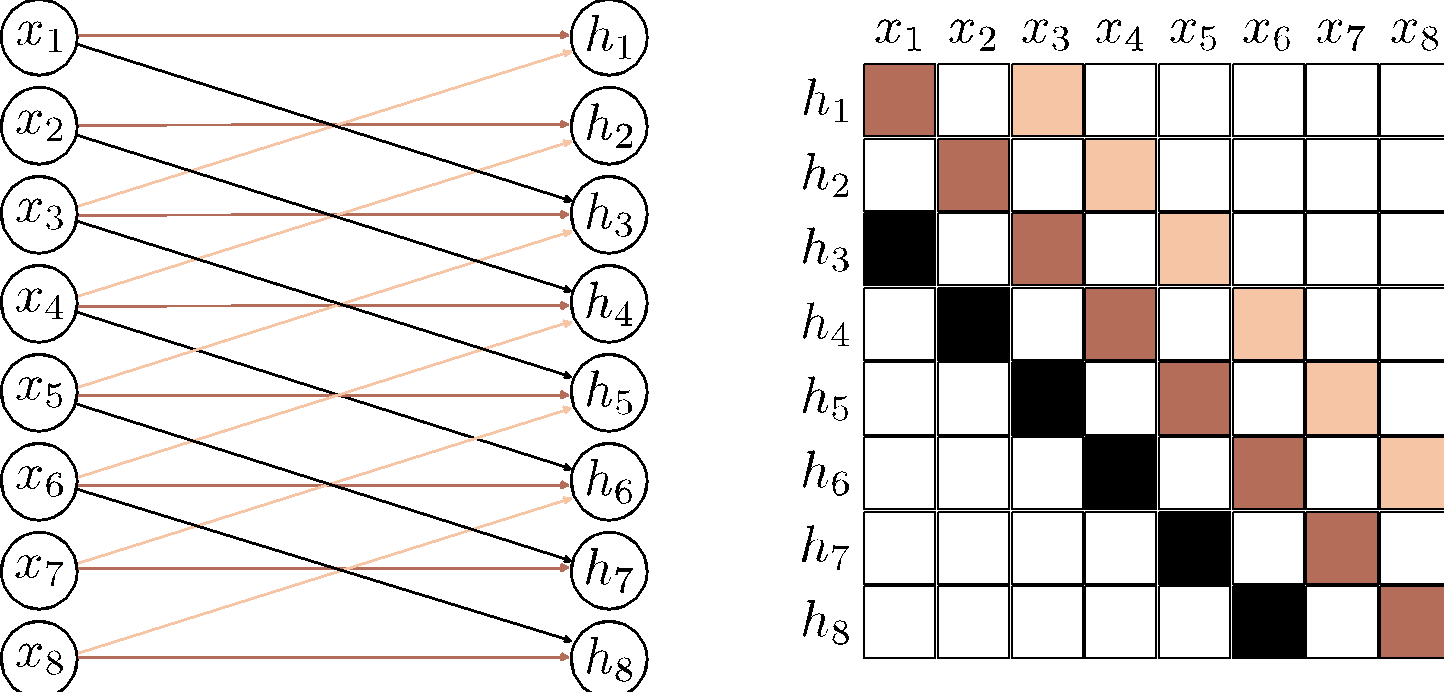

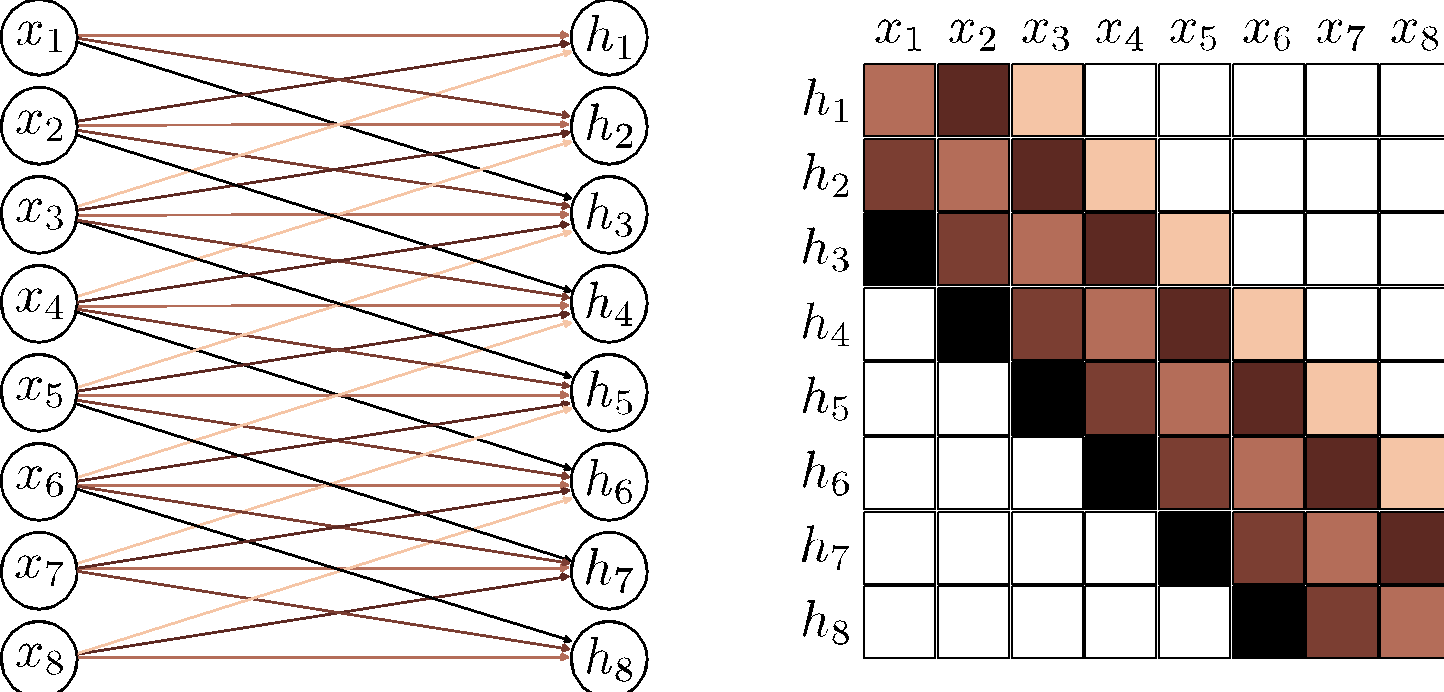

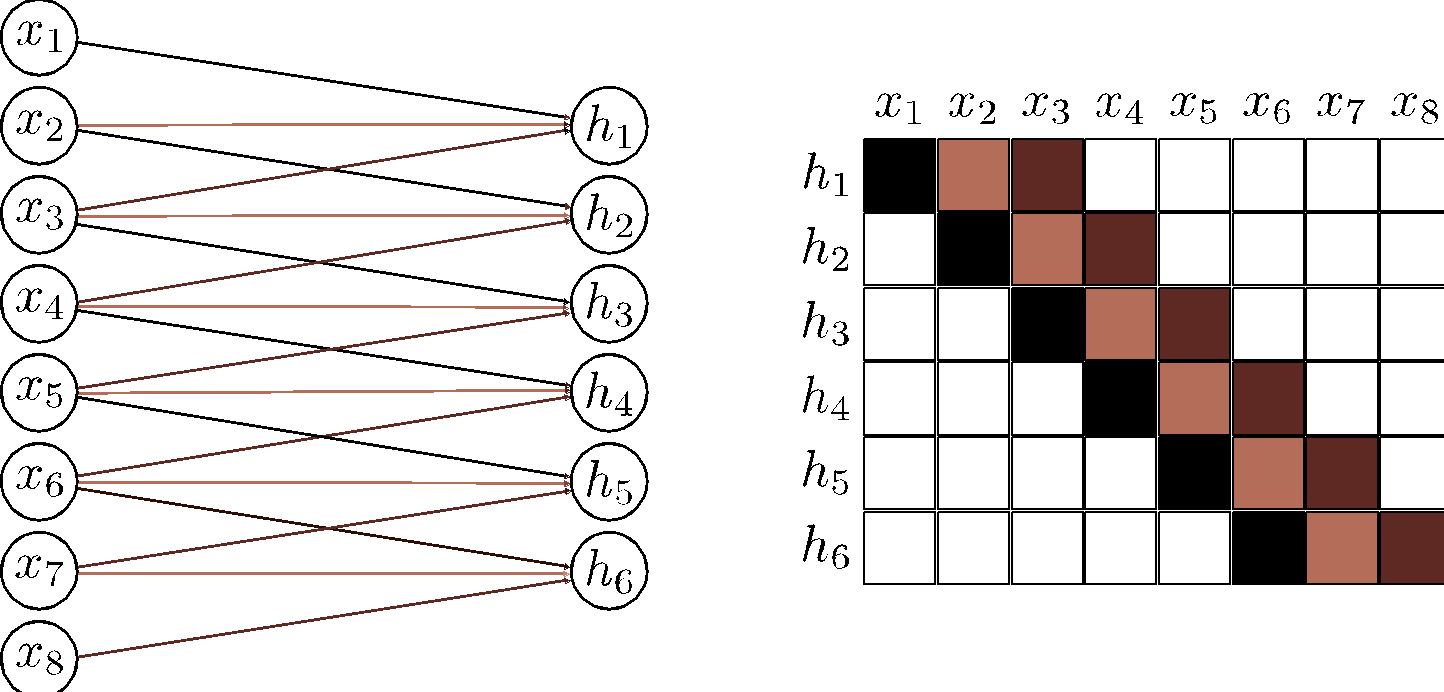

What are the kernel sizes, strides, dilations? Which ones are valid convolutions?

Channels

If we only apply a single convolution, information will likely be lost
- We are averaging nearby inputs
- ReLU activation function clips results that are less than zero.
It is usual to compute several convolutions in parallel.
- Each convlution produces a new set of hidden variables, termed a feature map or channel.

In general, the input and the hidden layers all have multiple channels.
If the incoming layer has $C_i$ channels and we select a kernel size $K$ per channel, the hidden units in each output channel are computed as a weighted sum over all $C_i$ channels and $K$ kernel entries using a weight matrix $\bm{\Omega} \in \R^{C_i \times K}$ and one bias.
- Hence, if there are $C_o$ channels in the next layer, then we need $\bm{\Omega} \in \R^{C_i \times C_o \times K}$ weights $\bm{\beta} \in \R^{C_o}$ biases.

Receptive fields

Similar to fully connected networks, convolutional networks comprise a sequence of convolutional layers.
The receptive field of a hidden unit in the network is the region of the original input that feeds into it.

Example: MNIST-1D

The input $\bm{x}$ is a $40$D vector, and the output $\bm{f}$ is a $10$D vector, which is passed through a softmax layer to produce class probabilities.

a) Templates for 10 classes y \in \{0, \ldots, 9\}, based on digits 0-9. b) Training examples \bm{x} are created by randomly transforming a template and c) adding noise. d) The horizontal offset of the transformed template is then sampled at 40 vertical positions. — a) Templates for 10 classes $y \in \{0, \ldots, 9\}$, based on digits $0-9$. b) Training examples $\bm{x}$ are created by randomly transforming a template and c) adding noise. d) The horizontal offset of the transformed template is then sampled at $40$ vertical positions.

Let us recall the performance of a fully-connected network we looked at in the previous chapters.

Fully Connected Network for MNIST-1D

$D_i = 40$ inputs, $D_o = 10$ outputs, passed through $\operatorname{softmax}$ activation function.
Two hidden layers with $D = 100$ hidden units each.
Trained using SGD with batch size $100$ and learning rate $\eta = 0.1$ for $6000$ steps ($150$ epochs).
Loss: multiway cross-entropy.

a) Percent classification error as a function of the training step. The training set errors decrease to zero, but the test errors do not drop below \sim 40\%. This model does not generalize well to new test data. b) Loss as a function of the training step. The training loss decreases steadily toward zero. The test loss decreases at first, but subsequently increases as the model becomes increasingly confident about its (wrong) predictions. — a) Percent classification error as a function of the training step. The training set errors decrease to zero, but the test errors do not drop below $\sim 40\%$. This model does not generalize well to new test data. b) Loss as a function of the training step. The training loss decreases steadily toward zero. The test loss decreases at first, but subsequently increases as the model becomes increasingly confident about its (wrong) predictions.

Instead, let us try a convolutional network with three hidden layers as in the next figure.

Convolutional network for classifying MNIST-1D data. The first convolutional layer has 15 channels, kernel size three, stride two, and only retains “valid” positions to make a hidden layer with nineteen positions and fifteen channels. The following two convolutional layers have the same setting, gradually reducing the representation size at each subsequent hidden layer. Finally, a fully connected layer takes all sixty hidden units from the third hidden layer. It outputs ten activations that are subsequently passed through a \operatorname{softmax} layer to produce the ten class probabilities. — Convolutional network for classifying MNIST-1D data. The first convolutional layer has 15 channels, kernel size three, stride two, and only retains “valid” positions to make a hidden layer with nineteen positions and fifteen channels. The following two convolutional layers have the same setting, gradually reducing the representation size at each subsequent hidden layer. Finally, a fully connected layer takes all sixty hidden units from the third hidden layer. It outputs ten activations that are subsequently passed through a $\operatorname{softmax}$ layer to produce the ten class probabilities.

This network was trained for $100,000$ steps using SGD without momentum, a learning rate of $0.01$, and a batch size of $100$ on a dataset of $4,000$ examples.
The CNN has $2,050$ parameters, whereas a fully connected network with layer sizes $\bmat{285 & 135 & 60}$ would have $59,065$ parameters.
The next figure shows both models fit the training data perfectly. However, the test error for the convolutional network is much less than for the fully connected network.

MNIST-1D results. a) The convolutional network from the previous figure eventually fits the training data perfectly and has \sim 17\% test error. b) A fully connected network with the same number of hidden layers and the number of hidden units in each learns the training data faster, but fails to generalize well with \sim 40\% test error. The latter model can reproduce the convolutional model in theory, but fails to do so. The convolutional structure restricts the possible mappings to those that process every position similarly, and this restriction improves performance. — MNIST-1D results.
a) The convolutional network from the previous figure eventually fits the training data perfectly and has $\sim 17\%$ test error.
b) A fully connected network with the same number of hidden layers and the number of hidden units in each learns the training data faster, but fails to generalize well with $\sim 40\%$ test error.
The latter model can reproduce the convolutional model in theory, but fails to do so. The convolutional structure restricts the possible mappings to those that process every position similarly, and this restriction improves performance.

Why does CNN outperform the fully-connected network?

Better inductive bias, i.e., interpolates between the training data better
- Because we have embodied some prior knowledge in the architecture:
  - forced the network to process each position in the input the same way.
The fully connected network has to learn what each digit template looks like at every position.
In contrast, the convolutional network shares information across positions and hence learns to identify each category more accurately.
Searches through a smaller family of input/output mappings, all of which are plausible.

Convolutional Neural Networks for $2$D inputs

The convolutional kernel is now a $2$D object.
For example, a $3 \times 3$ kernel $\Omega \in \R^{3 \times 3}$ applied to a $2$D input comprising of elements $x_{ij}$ computes a single layer of hidden units $h_{ij}$ as \[ h_{ij} = \sigma\left( \beta + \sum_{m=-1}^{1} \sum_{n=-1}^{1} \omega_{mn} x_{i+m, j+n} \right) \]

2D convolutional layer. Each output h_{ij} computes a weighted sum of the 3 \times 3 nearest inputs, adds a bias, and passes the result through an activation function. a) Here, the output h_{23} (shaded) is a weighted sum of the nine positions from x_{12} to x_{34} (shaded). b) Different outputs are computed by translating the kernel across the image grid in two dimensions. c-d) With zero-padding, positions beyond the image’s edge are considered to be zero. — 2D convolutional layer. Each output $h_{ij}$ computes a weighted sum of the $3 \times 3$ nearest inputs, adds a bias, and passes the result through an activation function.
a) Here, the output $h_{23}$ (shaded) is a weighted sum of the nine positions from $x_{12}$ to $x_{34}$ (shaded).
b) Different outputs are computed by translating the kernel across the image grid in two dimensions.
c-d) With zero-padding, positions beyond the image’s edge are considered to be zero.

Often, the input is an RGB image, which is treated as a $2$D signal with three channels.
Here, a $3 \times 3$ kernel would have $3 \times 3 \times 3$ weights and be applied to the three input channels at each of the $3 \times 3$ positions to create a $2$D output that is the same height and width as the input image (assuming zero-padding).
To generate multiple output channels, we repeat this process with different kernel weights and append the result to form a $3$D tensor{style=“color: dodgerblue;”}
If the kernel size is $K \times K$, and there are $C_i$ input channels, each output channel is a weighted sum of $C_i \times K \times K$ quantities plus one bias.
- It follows that to compute $C_o$ output channels, we need $C_i \times C_o \times K \times K$ weights and $C_o$ biases.

2D convolutional layer applied to an image. The image is treated as a 2D input with three channels corresponding to red, green, and blue components. With a 3 \times 3 kernel, each pre-activation in the first hidden layer is computed by pointwise multiplying the 3 \times 3 \times 3 kernel weights with the 3 \times 3 RGB image patch centered at the same position, summing, and adding the bias. To calculate all the pre-activations in the hidden layer, we “slide” the kernel over the image in both horizontal and vertical directions. The output is a 2D layer of hidden units. To create multiple output channels, we would repeat this process with multiple kernels, resulting in a 3D tensor of hidden units at hidden layer \bm{H}_1. — 2D convolutional layer applied to an image. The image is treated as a $2$D input with three channels corresponding to red, green, and blue components. With a $3 \times 3$ kernel, each pre-activation in the first hidden layer is computed by pointwise multiplying the $3 \times 3 \times 3$ kernel weights with the $3 \times 3$ RGB image patch centered at the same position, summing, and adding the bias. To calculate all the pre-activations in the hidden layer, we “slide” the kernel over the image in both horizontal and vertical directions. The output is a $2$D layer of hidden units. To create multiple output channels, we would repeat this process with multiple kernels, resulting in a $3$D tensor of hidden units at hidden layer $\bm{H}_1$.

Downsampling and upsampling

Downsampling

Note that the max pooling operation induces some level of invariance to translation.
- If the input is shifted by one pixel, many of these maximum values remain the same.

Upsampling

There is yet a fourth approach, which is roughly analogous to downsampling using a stride of two.
- Recall: in that method there were half as many outputs as inputs.
- For kernel size three, each output was a weighted sum of the three closest inputs.
In transposed convolution, this picture is reversed.
- There are twice as many outputs as inputs
- Each input contributes to three of the outputs.
When we consider the associated weight matrix of this upsampling mechanism, we see that it is the transpose of the matrix for the downsampling mechanism!

Transposed convolution in 1D. a) Downsampling with kernel size three, stride two, and zero padding. Each output is a weighted sum of three inputs (arrows indicate weights). b) This can be expressed by a weight matrix (same color indicates shared weight). c) In transposed convolution, each input contributes three values to the output layer, which has twice as many outputs as inputs. d) The associated weight matrix is the transpose of that in panel (b). — Transposed convolution in $1$D. a) Downsampling with kernel size three, stride two, and zero padding. Each output is a weighted sum of three inputs (arrows indicate weights). b) This can be expressed by a weight matrix (same color indicates shared weight). c) In transposed convolution, each input contributes three values to the output layer, which has twice as many outputs as inputs. d) The associated weight matrix is the transpose of that in panel (b).

Changing the number of channels

Sometimes we want to change the number of channels between one hidden layer and the next without further spatial pooling.
- Usually done so we can combine the representation with another parallel computation (ResNets).
To accomplish this, we apply convolution with kernel size one.
- Each element of the output layer is computed by taking a weighted sum of all the channels at the same position.
- We can repeat this multiple times with different weights to generate as many output channels as we need.
The associated convolution weights have size $1 \times 1 \times C_i \times C_o$.
- Hence, this is known as $1 \times 1$ convolution.
Combined with a bias and activation function, it is equivalent to running the same fully connected network on the input channels at every position.

1 \times 1 convolution. To change the number of channels without spatial pooling, we apply a 1 \times 1 kernel. Each output channel is computed by taking a weighted sum of all of the channels at the same position, adding a bias, and passing through an activation function. Multiple output channels are created by repeating this operation with different weights and biases. — $1 \times 1$ convolution. To change the number of channels without spatial pooling, we apply a $1 \times 1$ kernel. Each output channel is computed by taking a weighted sum of all of the channels at the same position, adding a bias, and passing through an activation function. Multiple output channels are created by repeating this operation with different weights and biases.

We will use convolutional nets to classify the digits of MNIST

State of the art: = 99.67% MNIST test digits can be correctly classified.
The incorrect classifications are shown below:
- The number at the top right is the correct classification.
- The number at the bottom right is the network’s classification.

First CNN trial

Recall, we previously obtained approximately $98\%$ accuracy on the test data
- That was a $\bmat{784 & 100 & 10}$ network using BCE loss.
- Hyperparameters: $\lambda = 5.0$, $\eta = 0.1$, $\abs{\mc{B}} = 10$, $n_{\text{epochs}} = 60$.
Let’s start with a simple conv/pool layer.
Next, go from a max-pool maps to a fully-connected layer with $100$ neurons.
The final layer is to connect the $100$ neurons to $10$ $\operatorname{softmax}$ neurons.

M. Nielsen obtains an accuracy of $98.78\%$ on the test data with this configuration.

Second CNN iteration

Second convolution layer: function from the $20$ pooling maps to $40$ output maps.
The activations feeding into the second convolution layer are the outputs from the max-pool neurons.

Interpreting the Weight Tensor

Suppose the first conv layer has only $4$ maps instead of $20$.
$w_{\ell, m, n}^{(k)} \in \R^{5 \times 5 \times 4}$, $k = 1, \dots, 40$: weight tensors from the $1^{\text{st}}$ conv/pool layer to the $2^{\text{nd}}$ conv layer.
Assume that the network has been trained. What could the kernels $w_{\ell, m, n}^{(k)}$ be looking for?
For each fixed $(\ell, m)$ one of the four weights $w_{\ell, m, 1}^{(k)}, w_{\ell, m, 2}^{(k)}, w_{\ell, m, 3}^{(k)}, w_{\ell, m, 4}^{(k)}$ will be close to $1$ and the other three will be close to $-1$ (or perhaps all four weights are close to $-1$).

Choose (reconstruct) direction $1$ if $w_{\ell, m, 1}^{(k)}$ is maximum, direction $2$ if $w_{\ell, m, 2}^{(k)}$ is maximum, etc.

The max-pool window is $2 \times 2$ with a stride of $2$.

Map 1 of conv 2 goes to map 1 of max-pool 2, etc.
The $4 \times 4 \times 20$ max-pool 2 neurons are fully connected to a layer of $100$ neurons
These $100$ neurons are fully connected to the $10$ $\operatorname{softmax}$ neurons
These are trained with the BCE loss to yield an accuracy on the test data of $98.7\%$.

Why a second convolutional-pooling layer?

The $2^{\text{nd}}$ conv layer constructs the $40$ tensors $w^{(k)} \in \R^{5 \times 5 \times 20}$ for $k = 1, \dots, 40$.
The input to the $2^{\text{nd}}$ conv layer are the $20$ pooled “images” (features) from the $1^{\text{st}}$ conv/pool layer.
These $20$ pooled “images” are abstract and condensed, but have a lot of spatial structure.
The $2^{\text{nd}}$ conv layer develops $40$ tensors to characterize this spatial structure.

If we further
- add regularization to the training,
- use ReLU instead of sigmoid activations on the hidden layers
We obtain an accuracy on the test data of $99.2\%$!
Note that the classification accuracy on the test data should be done using the weights from the training epoch with the best classification accuracy on the validation data.
Empirically ReLUs give better classification accuracy than sigmoids.
We further apply dropout on the fully connected layers.

Final Network

We add a secondary fully connected layer of $100$ neurons before the $\operatorname{softmax}$ output layer.
We augment the $50,000$ training images with $200,000$ distorted images (translations, rotations, scaling, etc.)

Training this final CNN on the augmented dataset yields a test accuracy of $99.6\%$!

Why are we able to train?

We set up a loss function and update weights/bias according to gradient descent.
Output layer: changed from a squared error to BCE loss to avoid vanishing gradients
Hidden layer: changed from sigmoid to ReLU to avoid vanishing gradients
Used conv/pool layers to find patterns (representation learning)
- These use a lot fewer weights than FC layers.
Weight regularization to reduce overfitting
Use dropout to force all the neurons to be involved in the learning.
Used data augmentation to force the network to learn the right stuff.
