System Thinking

Systems Architecture · Chapter 2

Aykut C. Satici

What Is System Thinking?

Thinking about a question, circumstance, or problem explicitly as a system
Goal: help complex systems appear less complicated
Two levels of ambition:
- Understanding what is — making sense of a system
- Predicting what might be — if something changes

Tip

At the pinnacle of system thinking is synthesizing a system — the subject of Part 3 of this course.

Four Tasks of System Thinking

Identify the system, its form, and its function
Identify the entities of the system, their form and function
Identify the relationships among the entities
Identify the emergent properties of the system

These four tasks structure the rest of this chapter.

Box 2.1 · Definition: System

A system is a set of entities and their relationships, whose functionality is greater than the sum of the individual entities.

Almost anything can be considered a system — almost everything contains entities and relationships
What matters is whether treating it as a system is useful
The second half of the definition is the important half — it’s what makes a system more than a pile of parts

Systems and Emergence

A system is a set of entities and their relationships, whose functionality is greater than the sum of the individual entities.

This is emergence — the power and the magic of systems. It’s why we build them.

What Emerges?

Function — what a system does: its actions, outcomes, outputs
- Anticipated and desirable (cars transport people)
- Anticipated but undesirable (cars burn hydrocarbons)
- Unanticipated but desirable (cars provide a sense of freedom)
- Unanticipated and undesirable (cars can kill people)
Performance — how well the system executes its function
The “ilities” — reliability, maintainability, safety, robustness — emerge over the system’s lifecycle, not immediately

Table 2.1 · Types of Emergent Function

Anticipated

Unanticipated

Desirable

Cars transport people
Cars keep people warm/cool

Cars create a sense of personal freedom

Undesirable

Cars burn hydrocarbons

Cars can kill people

Figure 2.1 · Emergence from Sand and a Funnel

Neither sand nor a funnel-shaped tube has a “timekeeping” function on its own — put together, the emergent function of keeping time appears. Source: Crawley, Cameron & Selva (2016), Fig. 2.1. Photo: LOOK Die Bildagentur der Fotografen GmbH/Alamy.

Box 2.2 · Principle of Emergence

“A system is not the sum of its parts, but the product of the interactions of those parts.” — Russell Ackoff

“The whole is more than the sum of the parts.” — Aristotle, Metaphysics

The interaction of entities leads to emergence
As a consequence, change propagates in unpredictable ways
It is difficult to predict how a change in one entity will influence emergent properties
System success = anticipated properties emerge; system failure = they don’t (or unwanted ones do)

Figure 2.2 · Emergent Performance

Every soccer team has the same function — score more than the opponent. Performance is how well the system executes it. The German national team, arguably the world’s highest-performing team in 2014, went on to win the World Cup. Source: Crawley, Cameron & Selva (2016), Fig. 2.2. Photo: wareham.nl (sport)/Alamy.

Emergency: When Emergence Goes Wrong

The most severe class of emergence: severe, unanticipated, undesirable emergence
We call this an emergency — same word root as emergence
Cars lose traction and spin. A soccer team implodes on the day of a big match.

Hurricane Katrina bearing down on New Orleans. Source: Crawley, Cameron & Selva (2016), Fig. 2.3. Image courtesy GOES Project Science Office/NASA.

Section 2.2 Summary

A system is a set of entities and their relationships, whose functionality is greater than the sum of the individual entities
Almost anything can be considered a system
Emergence occurs when the functionality of the system is greater than the sum of the functionalities of the individual entities
Understanding emergence is the goal — and the art — of system thinking
Function, performance, and the “ilities” emerge as systems operate; so does their absence — and so, in the worst case, does an emergency

2.3 Task 1

Identify the System, Its Form, and Function

Task 1: Identify the system, its form, and its function.

Form is what the system is — physical or informational, with shape, configuration, arrangement, layout
Function is what the system does — the action for which it exists
Form is not function, but form is necessary to deliver function

Four Running Examples

We’ll use these four systems throughout the rest of the course — chosen to span built and evolved, informational, organizational, mechanical, and natural systems.

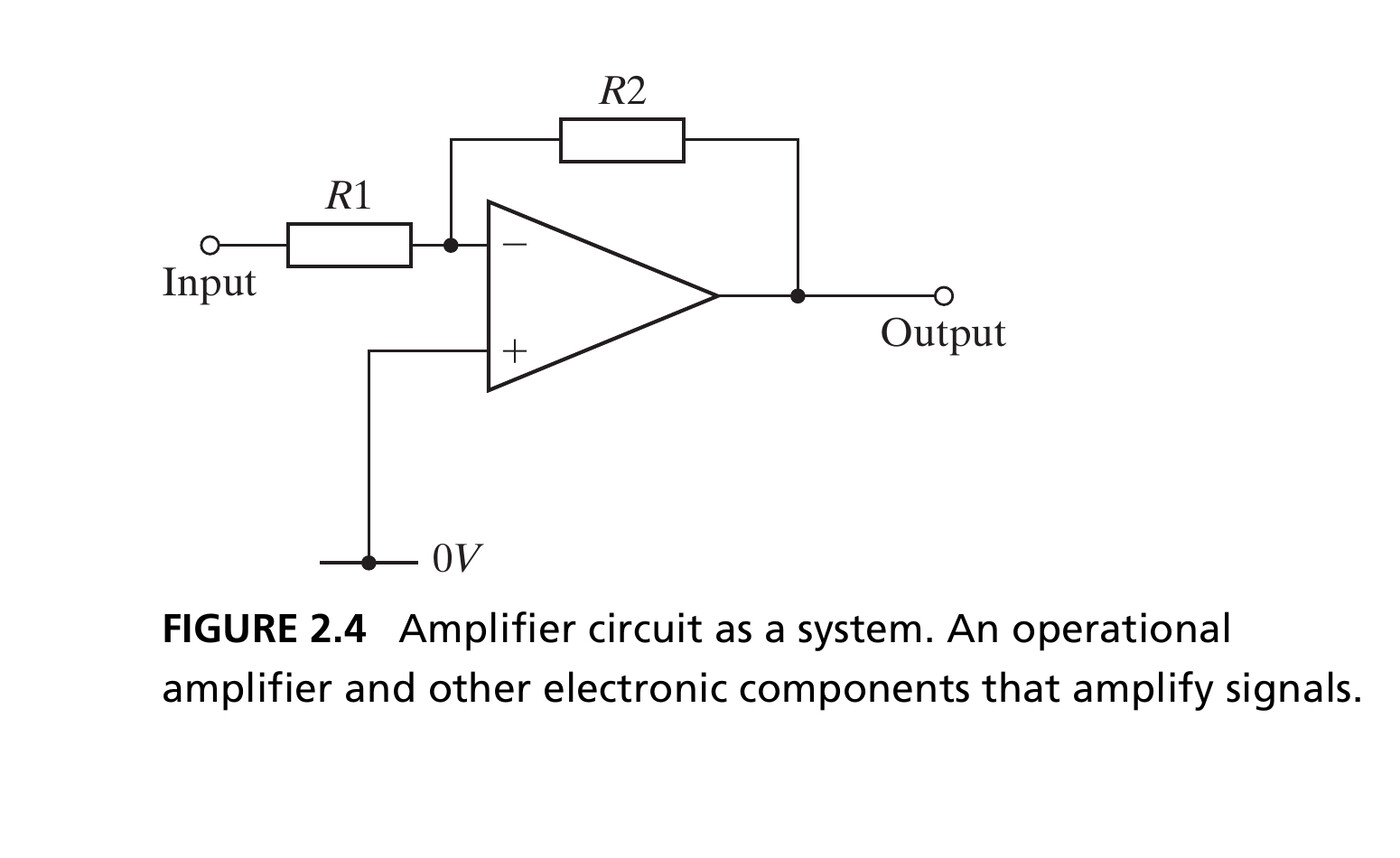

Amplifier circuit

Design team (Team X)

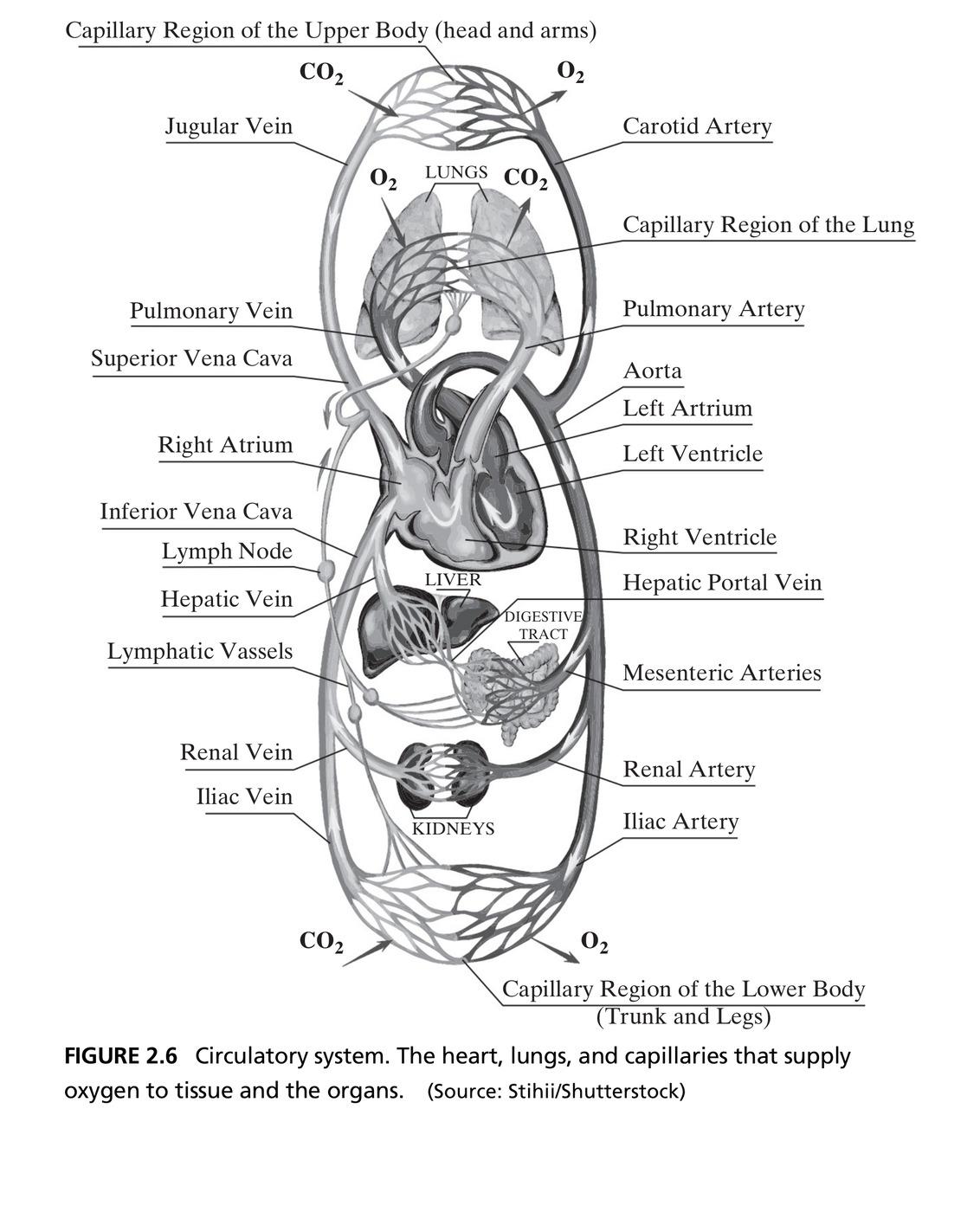

Circulatory system

Solar system

Source: Crawley, Cameron & Selva (2016), Figs. 2.4–2.7.

Function = Process + Operand

The process is the pure action or transformation — the part that changes the state of something
The operand is the thing whose state is changed — created, destroyed, or altered
In organizations, function is sometimes called role or responsibility

Tip

For the amplifier: the process amplifies, and the operand is the output signal.

Table 2.2 · Form and Function

System	Form	Process	Operand
Amplifier	The amplifier circuit	Amplifies	output signal
Design team (Team X)	The team	Develops	design
Circulatory system	The circulatory system	Supplies	oxygen
Solar system	The solar system	Maintains	constant solar flux

The solar system’s function is especially emergent — it requires both a constant solar output and a roughly constant planetary orbital radius.

Instrument – Process – Operand

Every system has an instrument of form (what it is) and a function, which breaks into a process (the transformation) and an operand (what’s transformed)
Noam Chomsky’s transformational grammar: every sentence has a noun (instrument), a verb (process), and a noun (operand)

noun – verb – noun
= form – process – operand

This instrument–process–operand pattern may be fundamental to how the human brain understands any system.

2.4 Task 2

Identify the Entities

Task 2: Identify the entities of the system, their form and function, and the system boundary and context.

Systems are composed of a set of entities — their constituents
Each entity also has its own form and function
Selecting entities is guided by holistic thinking and by focus

Table 2.3 · Entities Have Form and Function Too

System Function	Entity Function	Entity Form
Amplifies signal	Sets gain	Resistor 1, Resistor 2
	Amplifies voltage	Operational amplifier
Supplies oxygen	Pumps blood	Heart
	Exchanges gasses w/ atmosphere	Lungs
	Exchanges gasses w/ organs	Capillaries

Reading right to left — combining entities into the system — is aggregation. Reading left to right — breaking the system into entities — is decomposition. Doing the same with function is called zooming, and reversing it recovers emergence.

Five Issues for the Systems Thinker

Defining the initial decomposition into entities
Identifying potential entities using holistic thinking
Winnowing down to consequential entities using focus
Creating abstractions for the entities
Defining the boundary of the system, separating it from context

Modular vs. Integral Systems

Modular

Made of clearly distinct entities
Internal relationships are dense within a module, weak between modules
Decomposition is challenging but relatively clear

Integral

Highly interconnected — hardest to decompose
Cannot be easily divided without breaking function
Example: a car’s steering mechanism (tires, wheels, suspension, column — all simultaneously part of other systems too)

Some systems are trivially distinct (Team X: three separate people) — decomposition there is obvious.

Box 2.5 · Principle of Holism

“Always design a thing by considering it in its next larger context — a chair in a room, a room in a house, a house in an environment, an environment in a city plan.” — Eliel Saarinen

“No man is an island, entire of itself…” — John Donne

To think holistically is to encompass all aspects of the system at hand — influences, consequences, anything that might interact with it
Methods: structured/unstructured brainstorming, frameworks, thinking from different perspectives, thinking about context

Known-Unknowns vs. Unknown-Unknowns

Known-unknown

Something you know is there, but don’t know much about. Its presence is known; its features aren’t.

Unknown-unknown

Something you don’t even know is there — no way to evaluate its importance until it surfaces.

Tip

Holistic thinking works to convert as many unknown-unknowns into known-unknowns as possible.

Box 2.6 · Principle of Focus

“I see no more than you, but I have trained myself to notice what I see.” — Sherlock Holmes (Arthur Conan Doyle)

“The question is not what you look at but what you see.” — Henry David Thoreau

Holistic thinking can surface tens or hundreds of potentially relevant entities — too many for any team to hold at once
The human brain can reason about roughly seven ± two things at a time [Miller, 1956]
Failure rarely occurs in aspects on which you focus — it hides in what you left out

Table 2.4 · Evolution of Thinking about Team X

Initial: John develops concept · Sue evaluates & approves design

+ Holistic thinking: + Amy interprets requirements · Heather determines customer needs · Chris does competitive analysis · Karen plans manufacturing · James plans supply chain · Nicole interprets regulation · Meagan coaches team · John models project finance

+ Focus: narrowed back down to Amy, Heather, Chris, Karen, James (finance, team dynamics, regulation dropped)

+ Abstraction: Heather + Chris → “Marketing” · Karen + James → “Operations”

Creating Abstractions

An abstraction brings important details to the surface and hides the rest.

Op-amp → “amplifies the difference between two inputs”
A person → a “team member” who creates concepts
The heart → a simple pump
Planet Earth → a sphere

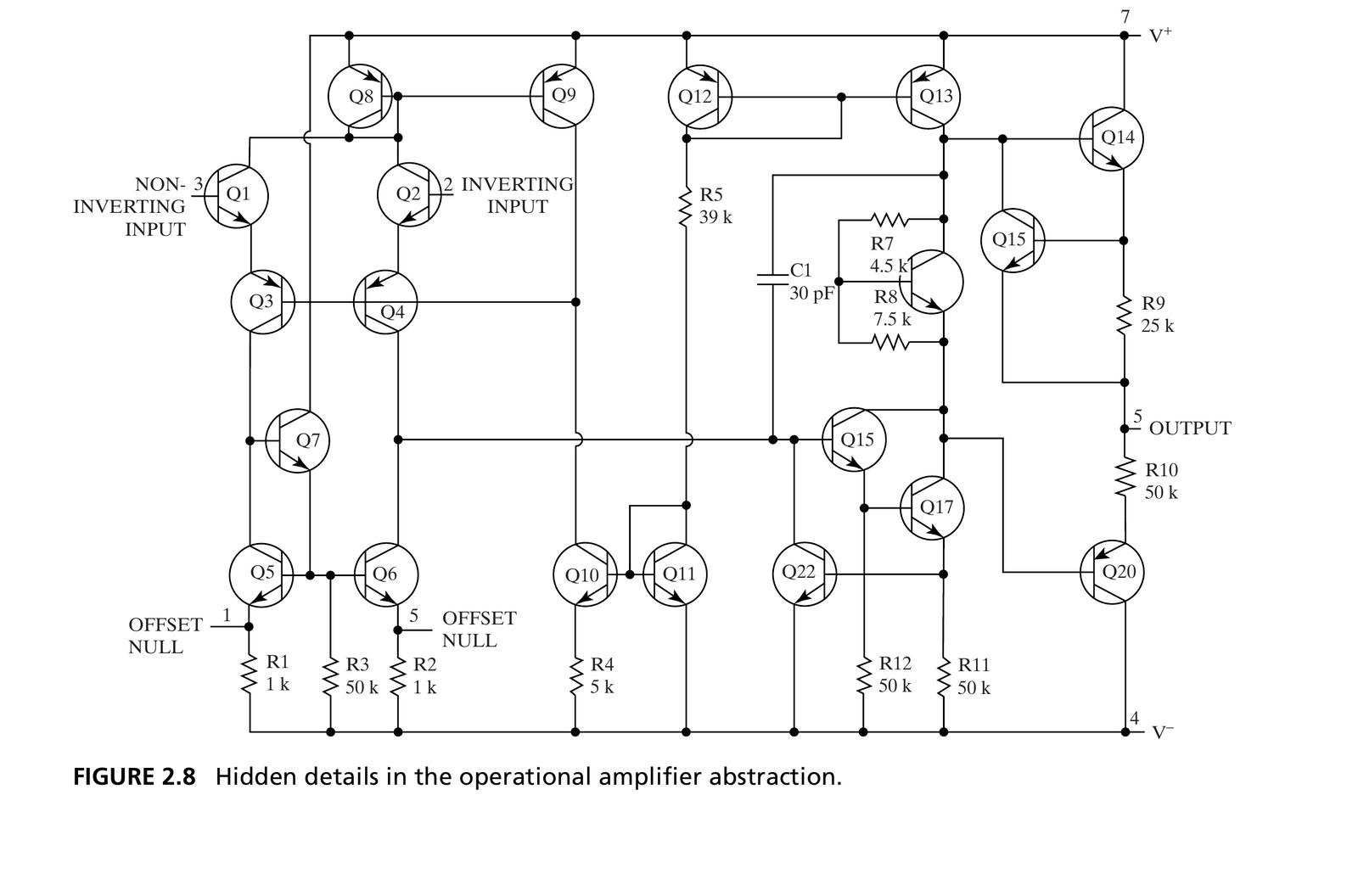

The detail hidden inside the “op-amp” abstraction. Source: Crawley, Cameron & Selva (2016), Fig. 2.8.

Guidelines for Good Abstractions

Represent the important information on the surface, concealing less important detail
Allow for representation of appropriate relationships
Create abstractions at the right level of decomposition or aggregation
Create the minimum number of abstractions that effectively represent the system

Abstractions aren’t unique — which one is “right” depends on the question at hand.

Defining the Boundary

Context is what surrounds the system — entities “just outside” that are still relevant to it.

Amy interprets requirements

Marketing performs analysis

John develops concept

Operations plans operations

Sue evaluates & approves

Solid boxes = in the system · faded boxes = context (outside the boundary)

When a relationship crosses the boundary, it defines an external interface.

2.5 Task 3

Identify the Relationships

Task 3: Identify the relationships among the entities in the system and at the boundary, as well as their form and function.

Relationships come in two flavors:

Formal relationships — exist or could exist stably (a connection, a geometric relationship). Also called structure.
Functional relationships — entities doing something to/with each other (operations, transfers, exchanges). Also called interactions.

Formal Enables Functional

A functional relationship usually requires a formal relationship as its instrument
The heart cannot exchange blood with the lung without a connection
Team members cannot share results without proximity or an information link
Because emergence occurs in the functional domain, functional interactions are ultimately what matter most — but formal relationships are where you start looking

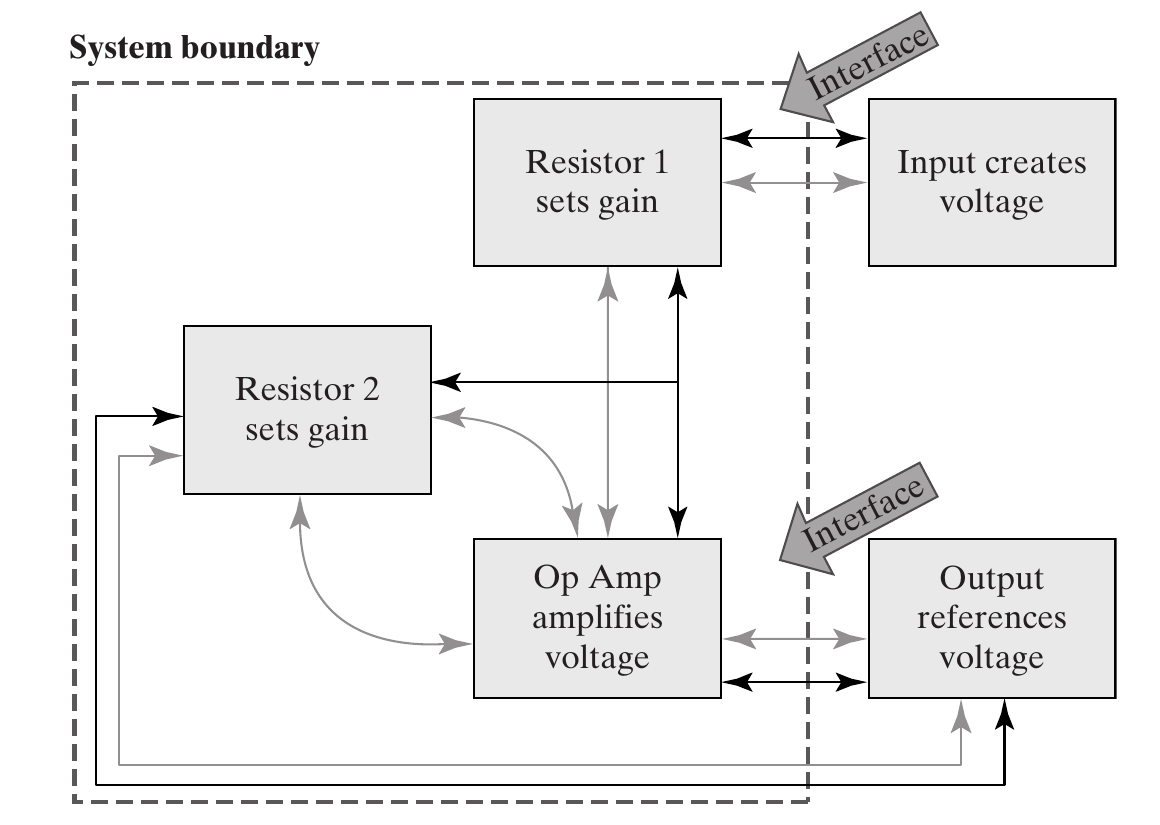

Resistor 1
sets gain

↔

Op Amp
amplifies voltage

thin arrow = formal (connected) · thick arrow = functional (exchanges current)

Two Ways to Represent Relationships

Relationship diagram

Boxes for entities, arrows for relationships. Easy to visualize; gets cluttered fast as entities multiply.

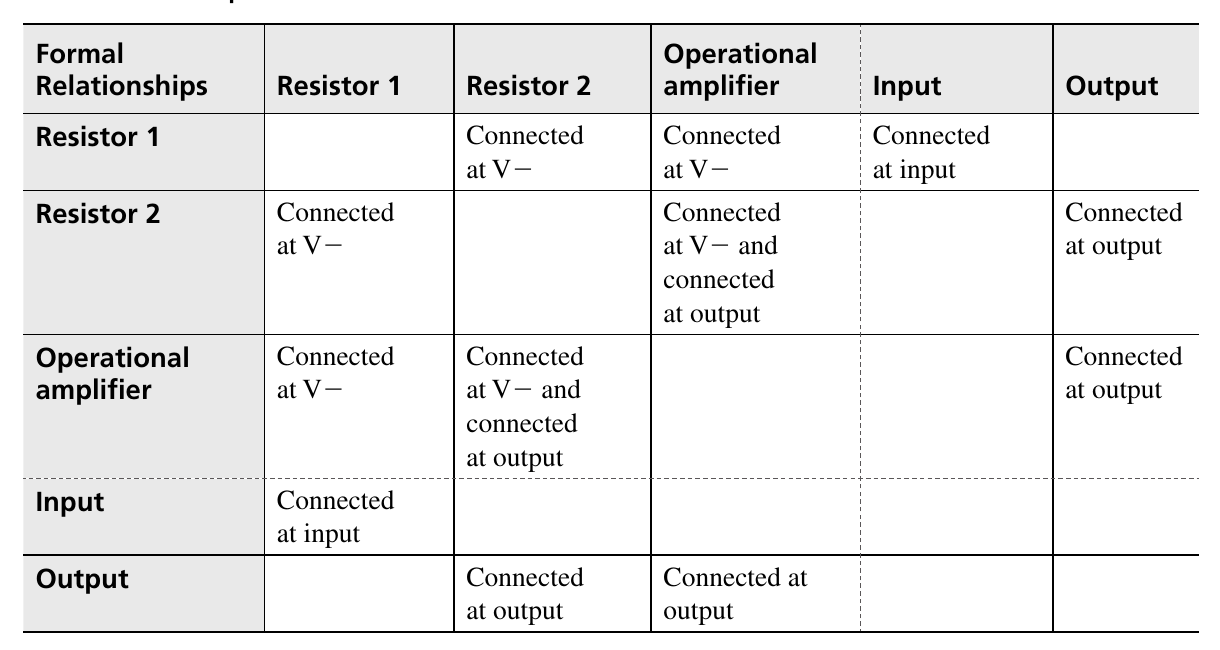

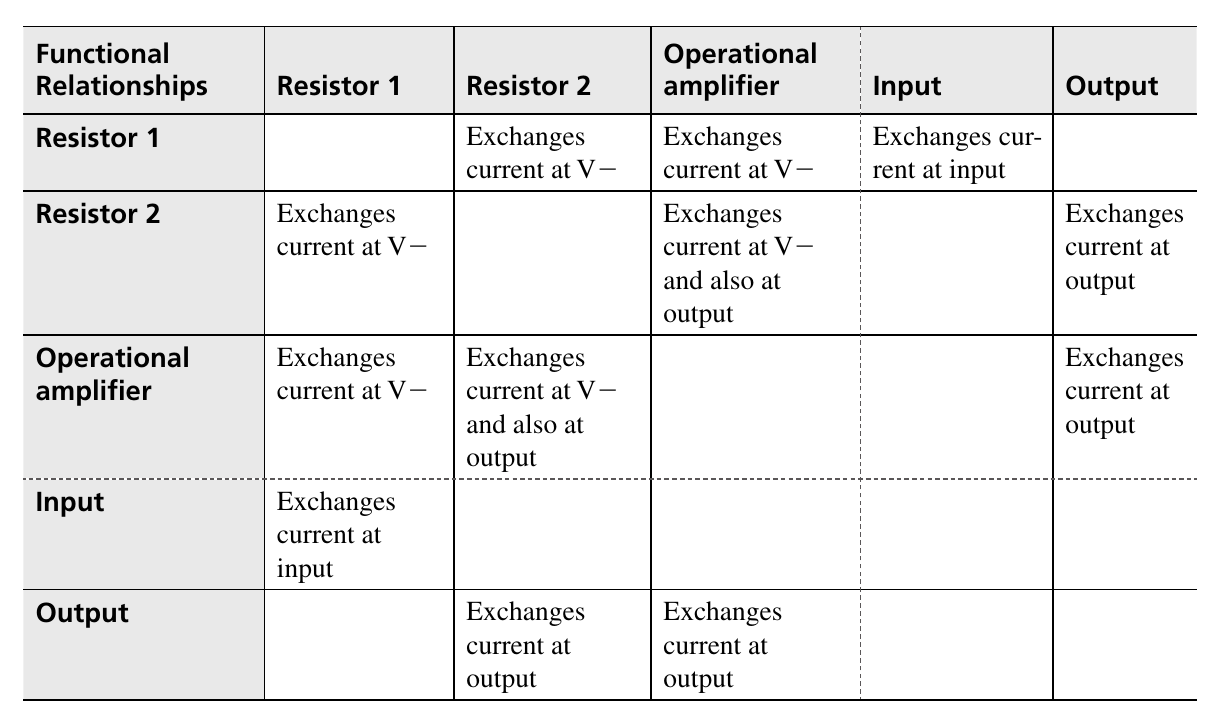

N-Squared table

An N×N grid of entities against themselves; off-diagonal cells describe the relationship. More detail, no visual clutter, but less intuitive at a glance.

Tip

Both diagrams distinguish relationships within the system from relationships that cross the system boundary — the external interfaces.

External Interfaces

Formal and functional relationships can exist across the boundary, between entities in the system and entities in its context
These are the system’s external interfaces
It is nearly impossible to define a system that has no external interfaces — everything connects to something beyond its boundary

Team X’s external interfaces: to Marketing (needs, competitive analysis) and to Operations (manufacturing, supply chain).

2.6 Task 4

Predicting Emergence

Task 4: Based on the function of the entities and their functional interactions, identify the emergent properties of the system.

Emergence is the magic of a system — but it’s hard to predict a priori what will emerge from combining the functions of a system’s entities.

System Failure

Failure happens two ways: the anticipated desirable emergence fails to occur, or undesirable emergence occurs unanticipated.

Gridlock: every car does exactly what it’s built to do, every driver follows the rules — yet the anticipated performance (fast travel) fails to materialize
Airbus A320, Warsaw: thrust reverser withheld until both landing gear compressed — but one wing was held low in the crosswind, so one gear never triggered it

A320 overrun in Warsaw, Poland — a system failure where every component worked exactly as designed. Source: Crawley, Cameron & Selva (2016), Fig. 2.12. Photo: STR News/Reuters.

Three Ways to Predict Emergence

Precedent

We’ve done it before, with minimal changes. Grandfather clocks work like this because grandfather’s did too.

Experiments

Put the entities together and see what happens. Spiral development builds a slice first to check emergence.

Modeling

If function and interaction can be modeled, emergence can sometimes be predicted. Integrated circuits: billions of transistors, modeled with a few lines of algebra.

Without precedent, experiment, or reliable modeling — you are reasoning from judgment alone. This is the crux of system thinking.

Emergence Depends on Structure

The same entities, arranged differently, produce different emergence:

Low-pass filter
Resistor between input/output, capacitor to ground → attenuates high frequencies.
Swap the components → attenuates low frequencies instead.

Mechanical lever
Fulcrum near the far end → magnifies force.
Move the fulcrum closer to the operator → the emergence disappears.

Software segment
IF statement first → conditional execution.
Reorder the sequence → the statement always executes.

Tip

Pattern of connectivity, physical location, and sequence are all formal relationships — and they govern what functionally emerges.

Section 2.6 Summary

Emergence can be predicted a priori via precedent, experimentation, and modeling
For unprecedented systems, humans must reason about emergence from judgment
Emergence depends on the function of the entities (enabled by form) and on the functional relationships (enabled by formal relationships)
It is emergence that gives systems their power — and creates the challenge of understanding and predicting them

Table 2.6 · Features and Tasks

Essential Feature of Systems	Task of System Thinking
Systems have form and function; form is the instrument of function	1. Identify the system, its form and function
Systems are composed of entities, which also have form and function	2. Identify the entities, their form/function, and the boundary
Entities are linked through formal and functional relationships	3. Identify the relationships, their form and function
Function and other properties emerge as the entities interact	4. Identify the emergent properties

From Understanding to Synthesizing

Understanding what is

↓

Predicting what might be, if something changes

↓

Informing judgment and balance in decision making

↓

Synthesizing a system — system architecting

Next: Thinking about Complex Systems

Chapter 3 extends system thinking to systems with many interrelated, interconnected entities:

What makes a system complex (vs. merely complicated)
Decomposition and hierarchy for complex systems
Special relationship types: class/instance, specialization/generalization
Tools for reasoning through complexity: zigzagging, views, projections
An introduction to SysML and OPM

Tip

Reference: Crawley, E., Cameron, B., & Selva, D. (2016). System Architecture: Strategy and Product Development for Complex Systems. Pearson. Chapter 2.
